Tableau Server on Windows Help

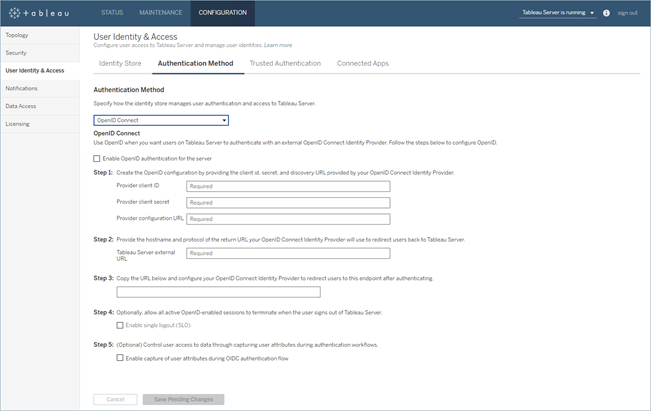

1. Open TSM in a browser:

   https://<tsm-computer-name>:8850. For more information, see Sign in to Tableau Services Manager Web UI.

2. Click User Identity & Access on the Configuration tab and then click Authentication Method.

3. Under Authentication Method, select OpenID Connect in the drop-down menu.

4. Under OpenID Connect, select Enable OpenID authentication for the server.

5. Enter the OpenID configuration information for your organisation:



   Note: If your provider relies on a configuration file hosted on the local computer (rather than a file hosted at a public URL), you can specify the file with the tsm authentication openid <commands>. Use the --metadata-file <file_path> option to specify a local IdP configuration file.

6. Click Save Pending Changes after you've entered your configuration information.

7. Click Pending Changes at the top of the page:



8. Click Apply Changes and Restart.

The procedure in this section describes how to use TSM command line interface to configure OpenID Connect. You can also use a configuration file for the initial configuration of OpenID Connect. See openIDSettings Entity.

1. Use the configure command of tsm authentication openid <commands> to set the following required options:

   --client-id <id>: Specifies the provider client ID that your IdP has assigned to your application. For example, “laakjwdlnaoiloadjkwha".

   --client-secret <secret>: Specifies the provider client secret. This is a token that is used by Tableau to verify the authenticity of the response from the IdP. This value is a secret and should be kept securely. For example, “xxxhfkjaw72123=".

   --config-url <url> or --metadata-file <file_path>: Specifies location of provider configuration json file. If the provider hosts a public json discovery file, then use --config-url. Otherwise, specify a path on the local computer and file name for --metadata-file instead.

   --return-url <url>: The URL of your server. This is typically is the public name of your server, such as "http://example.tableau.com".

   For example, run the command:

   tsm authentication openid configure --client-id “xxxkjwdlnaoiloadjkxxx" --client-secret “xxxhfkjaw72123=" --config-url "https://example.com/openid-configuration" --return-url "http://tableau.example.com"

   There are additional, optional configurations that you can set for Open ID Connect using either openIDSettings Entity or tsm authentication openid <commands>. In addition, if you need to configure IdP claim mapping, see Options for openid map-claims.

2. Type the following command to enable Open ID Connect:

   tsm authentication openid enable

3. Run tsm pending-changes apply to apply changes.

   If the pending changes require a server restart, the pending-changes apply command will display a prompt to let you know a restart will occur. This prompt displays even if the server is stopped, but in that case, there is no restart. You can suppress the prompt using the --ignore-prompt option, but this does not change the restart behaviour. If the changes do not require a restart, the changes are applied without a prompt. For more information, see tsm pending-changes apply.
