Create Custom Colour Palettes

Tableau Desktop comes with colour palettes that have been carefully designed to work well together and effectively apply colour to data in many situations, such as on maps, heatmaps, bar charts, etc. You can also create and use your own custom colour palettes by modifying the Preferences.tps file that comes with Tableau Desktop. For example, you can create a custom categorical palette that matches your company's brand.

About the preferences file

You can add as many custom palettes as you like to your Preferences.tps file, each with as many colours as you want. Although there isn’t a limit to how many colours can be added to each custom palette, the Edit colours dialog box only shows 20 colours. If you need to manually assign more than 20 colours to data items, you may want to create several custom palettes with 20 or fewer colours in each palette.

When you modify Preferences.tps to add colours, use the standard HTML format for the new colours (hex code #RRGGBB or Red Green Blue format). When you save the workbook and restart Tableau Desktop, the colour palette names you added to Preferences.tps appear in the Select Colour Palette drop-down list (Edit Colour dialog). You can use a custom palette like you would any other.

Tableau doesn't test or support custom colour palettes, so be sure to back up your workbooks before you continue. Also, there is no guarantee that custom colour palettes you create will work with future Tableau Desktop upgrades.

Note: When you edit your Preferences.tps file, be sure to use straight quotation marks (' ' or " ") to delimit the palette name and type, not curly quotation marks (“ ” or ‘ ’).

Edit the preferences file

The Preferences.tps file is located in the My Tableau Repository folder that is created when you install Tableau Desktop, likely located in Documents. The preferences file is a basic XML file that you can open in a text editor to modify. An unedited preferences file looks like this:

To edit your preferences file:

  1. Go to the My Tableau Repository folder in your Documents directory, and open the Preferences.tps file with a text editor.
  2. Between the opening and closing workbook tags, insert opening and closing preferences tags so that it looks like this:
    <?xml version='1.0'?>
    <workbook>
    <preferences>
    </preferences>
    </workbook>

    Note: If your Preferences.tps file already has preferences tags, you don't need to add them again.

  1. Follow one of the next procedures to create a custom colour palette by inserting color-palette tags between the preferences tags. For example:
    <?xml version='1.0'?>
    <workbook>
    <preferences>
    <color-palette name="MyColors" type="regular">
    <color>#1e4c56</color>
    <color>#cba94b</color>
    </color-palette>
    </preferences>
    </workbook>

    Colour palettes can be categorical (type="regular"), sequential (type="ordered-sequential") or diverging (type="ordered-diverging").

  2. To add more palettes, insert another set of color-palette tags.
    <?xml version='1.0'?>
    <workbook>
    <preferences>
    <color-palette name="MyColors" type="regular">
    <color>#1e4c56</color>
    <color>#cba94b</color>
    </color-palette>
    <color-palette name="MoreColors" type="regular">
    <color>#ffe96f</color>
    <color>#799a0d</color>
    </color-palette>
    </preferences>
    </workbook>
  3. You must restart Tableau Desktop to see the new colour palettes.

Create a categorical palette

A categorical colour palette contains several distinct colours that can be assigned to discrete dimension members. For example, when you put a discrete dimension such as Region on the Colour card, the categorical colour legend is used.

In the preferences file, a categorical palette is type="regular".

Build a custom categorical colour palette

The following is an example of what to add between the preferences tags to add a categorical colour palette. Note that the type attribute is specified as regular, which identifies this palette as a categorical palette.

To create a custom categorical colour palette:

  1. In the Preferences.tps file, between the ‘preferences’ tags, paste the following. Be sure to use straight quotation marks, not curly quotation marks, to delimit the name and type of palette.
    <color-palette name="My Categorical Palette" type="regular">
    <color>#eb912b</color>
    <color>#7099a5</color> <color>#c71f34</color>
    <color>#1d437d</color>
    <color>#e8762b</color>
    <color>#5b6591</color>
    <color>#59879b</color>
    </color-palette>
  2. Save the Preferences.tps file and then restart Tableau Desktop.
  3. Open a data source, such as the Superstore - Sample data source.
  4. From the Data pane, drag a discrete dimension, such as Region, to Colour.

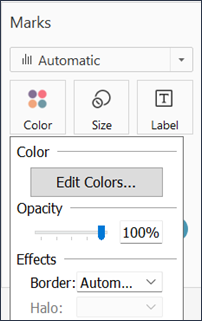

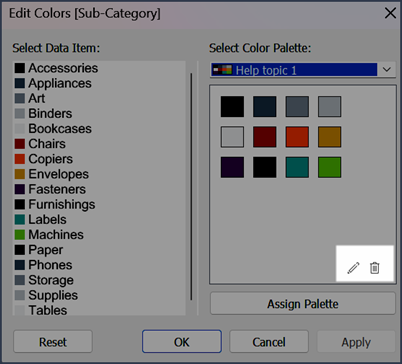

  5. Click the colour legend menu arrow and select Edit Colours.

  6. In the Edit Colours dialog box, from the palette drop-down list, select your new custom palette.

  7. Click the Assign Palette button to assign the custom colours to each respective field.
  8. Click OK.

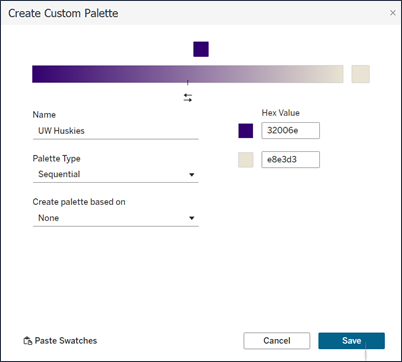

Create a sequential palette

Another type of palette is the sequential colour palette. This type of colour palette is used for continuous fields, typically for measures. Typically, a sequential palette shows a single colour, varying in intensity.

You must specify at least the two end colours in the sequential colour range. Tableau will extrapolate the shades in between.

Build a custom sequential colour palette

The following is an example of what to add between the preferences tags to add a sequential colour palette. Note that the type attribute is specified as ordered-sequential, which identifies this palette as a sequential palette.

To create a custom sequential colour palette:

  1. In the Preferences.tps file, between the preferences tags, paste the following. Be sure to use straight quotation marks, not curly quotation marks, to delimit the name and type of palette.
    <color-palette name="My Sequential Palette" type="ordered-sequential">
    <color>#eb912b</color>
    <color>#eb9c42</color>
    <color>#ebad67</color>
    <color>#eabb86</color>
    <color>#eacba8</color>
    <color>#ebd8c2</color>
    </color-palette>
  2. Save the Preferences.tps file and then restart Tableau Desktop.
  3. Open a data source, such as the Superstore- Sample data source.
  4. From the Data pane, drag a measure (such as Sales) to Colour.

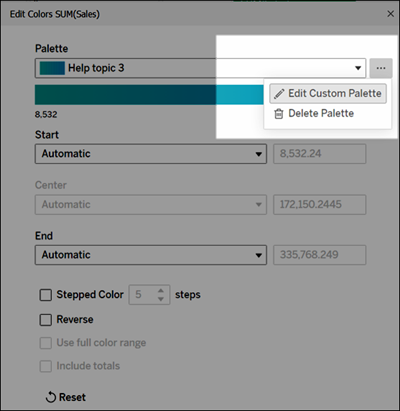

  5. Click the colour legend menu arrow, and select Edit Colours.
  6. In the Edit Colours dialog box, from the palette drop-down list, select your custom palette.
  7. If you want each colour gradation to be defined within a box, select the Stepped Colour check box, and in the Steps text box, type the number of colour steps you want to display in the bar.
  8. Click the Advanced button.
  9. Select the Start check box, and in the text box, type the low end number you want for the continuum.
  10. Click the Apply button to see the result, and make adjustments as needed. The colour will range from high to low intensity (or the reverse) based on the order you specify in the Preferences.tps file. The default for sequential colour palettes in Tableau is to make the high end of the continuum intense and the low end pale, though selecting the Reversed check box will do the opposite.

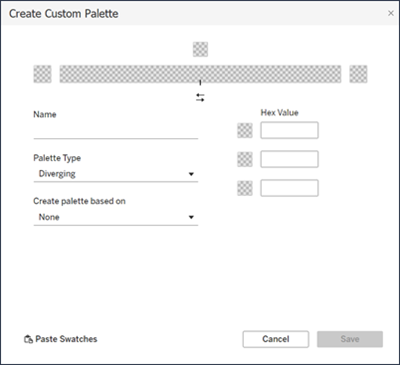

Create a diverging colour palette

The third type of colour palette is a diverging colour palette. Instead of a gradient from one extreme to the other, a diverging palette is like two sequential palettes that share a colour in the middle but have different extremes. This type of palette shows two ranges of values using colour intensity (how dark or light) to show the magnitude of the number, and the actual colour (orange or blue) to show which range the number is from. Diverging palettes are most commonly used to show the difference between positive and negative numbers.

Build a custom diverging colour palette

The following is an example of what to add between the preferences tags to add a diverging colour palette. Note that the type attribute is specified as ordered-diverging, which identifies this palette as a diverging palette.

To create a custom diverging colour palette:

  1. In the Preferences.tps file, between the preferences tags, paste the following. Be sure to use straight quotation marks, not curly quotation marks, to delimit the name and type of palette.
    <color-palette name="My Diverging Palette" type="ordered-diverging">
    <color>#eb912b</color>
    <color>#59879b</color>
    </color-palette>
  2. Save the Preferences.tps file and then restart Tableau Desktop.
  3. Open a data source, such as the Superstore - Sample data source.
  4. Click the Assign Palette button. The colours in the palette are used in the order they appear in the Preferences file.

Use discontinued (classic) colour palettes

In version 10.0, Tableau created new colour palettes, updated some existing ones (such as Tableau 10 and Tableau 20), and discontinued others. If you want to keep using a colour palette that was discontinued, you can edit your Preferences.tps file to add the hex values for the palette. You can add as many colour palettes as you like.

Hex values for discontinued colour palettes

The table below lists discontinued colour palettes, along with the XML code and hex values you can use in your Preferences.tps file to restore them. If you use the code as-is, palette names will start with Classic to indicate that they're from before version 10.0. In many cases, there are updated versions of colour palettes that have been discontinued.

Version 9.x palette nameVersion 9.x HEX Values

Tableau 10

Now called Tableau Classic 10.

<color-palette name="Classic 10" type="regular">
<color>#17becf</color> <color>#bcbd22</color> <color>#7f7f7f</color> <color>#e377c2</color> <color>#8c564b</color> <color>#9467bd</color> <color>#d62728</color> <color>#2ca02c</color> <color>#ff7f0e</color> <color>#1f77b4</color>
</color-palette>

Tableau 10 Medium

Now called Tableau Classic Medium.

<color-palette name="Classic 10 Medium" type="regular">
<color>#6dccda</color> <color>#cdcc5d</color> <color>#a2a2a2</color> <color>#ed97ca</color> <color>#a8786e</color> <color>#ad8bc9</color> <color>#ed665d</color> <color>#67bf5c</color> <color>#ff9e4a</color> <color>#729ece</color>
</color-palette>

Tableau 10 Light

<color-palette name="Classic 10 Light" type="regular">
<color>#9edae5</color> <color>#dbdb8d</color> <color>#c7c7c7</color> <color>#f7b6d2</color> <color>#c49c94</color> <color>#c5b0d5</color> <color>#ff9896</color> <color>#98df8a</color> <color>#ffbb78</color> <color>#aec7e8</color>
</color-palette>

Tableau 20

Now called Tableau Classic 20.

<color-palette name="Classic 20" type="regular"> <color>#9edae5</color> <color>#17becf</color> <color>#dbdb8d</color> <color>#bcbd22</color> <color>#c7c7c7</color> <color>#7f7f7f</color> <color>#f7b6d2</color> <color>#e377c2</color> <color>#c49c94</color> <color>#8c564b</color> <color>#c5b0d5</color> <color>#9467bd</color> <color>#ff9896</color> <color>#d62728</color> <color>#98df8a</color> <color>#2ca02c</color> <color>#ffbb78</color> <color>#ff7f0e</color> <color>#aec7e8</color> <color>#1f77b4</color>
</color-palette>

Grey 5

Replaced with Seattle Greys.

<color-palette name="Classic Gray 5" type="regular"> <color>#cfcfcf</color> <color>#8f8782</color> <color>#414451</color> <color>#a5acaf</color> <color>#60636a</color>
</color-palette>

Colour Blind 10

Updated as Colour Blind.

<color-palette name="Classic Color Blind" type="regular">
<color>#cfcfcf</color> <color>#ffbc79</color> <color>#a2c8ec</color> <color>#898989</color> <color>#c85200</color> <color>#5f9ed1</color> <color>#595959</color> <color>#ababab</color> <color>#ff800e</color> <color>#006ba4</color>
</color-palette>

Traffic Light

Updated asTraffic Light.

<color-palette name="Classic Traffic Light" type="regular">
<color>#9fcd99</color> <color>#ffdd71</color> <color>#f26c64</color> <color>#69b764</color> <color>#ffc156</color> <color>#d82526</color> <color>#309343</color> <color>#dba13a</color> <color>#b10318</color>
</color-palette>

Purple-Grey 6

Discontinued.

<color-palette name="Classic Purple-Gray 6" type="regular">
<color>#d7d5c5</color> <color>#d098ee</color> <color>#995688</color> <color>#94917b</color> <color>#dc5fbd</color> <color>#7b66d2</color>
</color-palette>

Purple-Grey 12

Updated as Purple-Pink-Grey.

<color-palette name="Classic Purple-Gray 12" type="regular">
<color>#dbd4c5</color> <color>#8b7c6e</color> <color>#d098ee</color> <color>#ab6ad5</color> <color>#d898ba</color> <color>#995688</color> <color>#b4b19b</color> <color>#5f5a41</color> <color>#ffc0da</color> <color>#dc5fbd</color> <color>#a699e8</color> <color>#7b66d2</color>
</color-palette>

Green-Orange 6

Discontinued.

<color-palette name="Classic Green-Orange 6" type="regular">
<color>#b85a0d</color> <color>#39737c</color> <color>#ffd94a</color> <color>#3cb7cc</color> <color>#ff7f0f</color> <color>#32a251</color>
</color-palette>

Green-Orange 12

Updated as Green-Orange-Teal.

<color-palette name="Classic Green-Orange 12" type="regular">
<color>#ccc94d</color> <color>#82853b</color> <color>#86b4a9</color> <color>#39737c</color> <color>#ffd94a</color> <color>#b85a0d</color> <color>#98d9e4</color> <color>#3cb7cc</color> <color>#ffb977</color> <color>#ff7f0f</color> <color>#acd98d</color> <color>#32a251</color>
</color-palette>

Blue-Red 6

Discontinued.

<color-palette name="Classic Blue-Red 6" type="regular">
<color>#e9c39b</color> <color>#ea6b73</color> <color>#6ba3d6</color> <color>#ac613c</color> <color>#f02720</color> <color>#2c69b0</color>
</color-palette>

Blue-Red 12

Updated as Blue-Red-Brown.

<color-palette name="Classic Blue-Red 12" type="regular">
<color>#f4737a</color> <color>#bd0a36</color> <color>#ddc9b4</color> <color>#ac8763</color> <color>#b5dffd</color> <color>#6ba3d6</color> <color>#e9c39b</color> <color>#ac613c</color> <color>#ffb6b0</color> <color>#f02720</color> <color>#b5c8e2</color> <color>#2c69b0</color>
</color-palette>

Cyclic

Updated as Hue Circle.

<color-palette name="Classic Cyclic" type="regular">
<color>#6f63bb</color> <color>#8a60b0</color> <color>#ba43b4</color> <color>#c7519c</color> <color>#d63a3a</color> <color>#ff7f0e</color> <color>#ffaa0e</color> <color>#ffbf50</color> <color>#bcbd22</color> <color>#78a641</color> <color>#2ca030</color> <color>#12a2a8</color> <color>#1f83b4</color>
</color-palette>

Green

Updated.

<color-palette name="Classic Green" type="ordered-sequential">
<color>#09622a</color> <color>#1a7232</color> <color>#27823b</color> <color>#339444</color> <color>#69a761</color> <color>#94bb83</color> <color>#bccfb4</color>
</color-palette>

Grey

Updated.

<color-palette name="Classic Gray" type="ordered-sequential">
<color>#1e1e1e</color> <color>#282828</color> <color>#333333</color> <color>#3f3f3f</color> <color>#4b4b4b</color> <color>#585858</color> <color>#666666</color> <color>#747474</color> <color>#838383</color> <color>#929292</color> <color>#a2a2a2</color> <color>#b2b2b2</color> <color>#c3c3c3</color>
</color-palette>

Blue

Updated.

<color-palette name="Classic Blue" type="ordered-sequential">
<color>#26456e</color> <color>#1c5998</color> <color>#1c73b1</color> <color>#3a87b7</color> <color>#67add4</color> <color>#7bc8e2</color> <color>#b4d4da</color>
</color-palette>

Red

Updated.

<color-palette name="Classic Red" type="ordered-sequential">
<color>#9c0824</color> <color>#b10c1d</color> <color>#c21417</color> <color>#cf1719</color> <color>#d8392c</color> <color>#e35745</color> <color>#f57667</color> <color>#f89a90</color> <color>#eac0bd</color>
</color-palette>

Orange

Updated.

<color-palette name="Classic Orange" type="ordered-sequential">
<color>#7b3014</color> <color>#a33202</color> <color>#d74401</color> <color>#f06511</color> <color>#fd8938</color> <color>#fdab67</color> <color>#f0c294</color>
</color-palette>

Area Red

Discontinued.

<color-palette name="Classic Area Red" type="ordered-sequential">
<color>#bd1100</color> <color>#c92b14</color> <color>#d43e25</color> <color>#e04e35</color> <color>#ea5e45</color> <color>#f46b55</color> <color>#fd7864</color> <color>#fe8b7a</color> <color>#fd9c8f</color> <color>#fbb3ab</color> <color>#f5cac7</color>
</color-palette>

Area Green

Discontinued.

<color-palette name="Classic Area Green" type="ordered-sequential">
<color>#3c8200</color> <color>#4a8c1c</color> <color>#569735</color> <color>#60a24d</color> <color>#6cae59</color> <color>#7abc5f</color> <color>#8ac765</color> <color>#9ad26d</color> <color>#acdc7a</color> <color>#c3e394</color> <color>#dbe8b4</color>
</color-palette>

Area Brown

Discontinued.

<color-palette name="Classic Area-Brown" type="ordered-sequential">
<color>#bb5137</color> <color>#bb6348</color> <color>#bb7359</color> <color>#c08262</color> <color>#cc8f63</color> <color>#d89c63</color> <color>#e4aa63</color> <color>#f0b763</color> <color>#f7c577</color> <color>#f6d29c</color> <color>#f3e0c2</color>
</color-palette>

Red-Green Diverging

Updated.

<color-palette name="Classic Red-Green" type="ordered-diverging">
<color>#09622a</color> <color>#1e7735</color> <color>#2f8e41</color> <color>#69a761</color> <color>#a2c18f</color> <color>#cacaca</color> <color>#fc8375</color> <color>#df513f</color> <color>#d11719</color> <color>#bd1316</color> <color>#9c0824</color>
</color-palette>

Red-Blue Diverging

Updated.

<color-palette name="Classic Red-Blue" type="ordered-diverging">
<color>#26456e</color> <color>#1c5998</color> <color>#1c73b1</color> <color>#3a87b7</color> <color>#67add4</color> <color>#cacaca</color> <color>#fc8375</color> <color>#df513f</color> <color>#d11719</color> <color>#bd1316</color> <color>#9c0824</color>
</color-palette>

Red-Black Diverging

Updated.

<color-palette name="Classic Red-Black" type="ordered-diverging">
<color>#1e1e1e</color> <color>#383838</color> <color>#565656</color> <color>#777777</color> <color>#9b9b9b</color> <color>#cacaca</color> <color>#fc8375</color> <color>#df513f</color> <color>#d11719</color> <color>#bd1316</color> <color>#9c0824</color>
</color-palette>

Area Red-Green Diverging

Discontinued.

<color-palette name="Classic Area Red-Green" type="ordered-diverging">
<color>#4a8c1c</color> <color>#559633</color> <color>#5ea049</color> <color>#69aa56</color> <color>#75b65d</color> <color>#82c162</color> <color>#90cb68</color> <color>#a0d571</color> <color>#b1de7f</color> <color>#c7e298</color> <color>#e9dabe</color> <color>#fca294</color> <color>#fe8e7e</color> <color>#fd7e6b</color> <color>#f7705b</color> <color>#ef654d</color> <color>#e6583e</color> <color>#dc4930</color> <color>#d23a21</color> <color>#c82912</color> <color>#bd1100</color>
</color-palette>

Orange-Blue Diverging

Updated.

<color-palette name="Classic Orange-Blue" type="ordered-diverging">
<color>#26456e</color> <color>#1c5998</color> <color>#1c73b1</color> <color>#3a87b7</color> <color>#67add4</color> <color>#7bc8e2</color> <color>#cacaca</color> <color>#fdab67</color> <color>#fd8938</color> <color>#f06511</color> <color>#d74401</color> <color>#a33202</color> <color>#7b3014</color>
</color-palette>

Green-Blue Diverging

Updated.

<color-palette name="Classic Green-Blue" type="ordered-diverging">
<color>#26456e</color> <color>#1c5998</color> <color>#1c73b1</color> <color>#3a87b7</color> <color>#67add4</color> <color>#cacaca</color> <color>#a2c18f</color> <color>#69a761</color> <color>#2f8e41</color> <color>#1e7735</color> <color>#09622a</color>
</color-palette>

Red-White-Green Diverging

Updated.

<color-palette name="Classic Red-White-Green" type="ordered-diverging">
<color>#09622a</color> <color>#297839</color> <color>#428f49</color> <color>#74af72</color> <color>#b9d7b7</color> <color>#ffffff</color> <color>#fcb4a5</color> <color>#e86753</color> <color>#cc312b</color> <color>#b41f27</color> <color>#9c0824</color>
</color-palette>

Red-White-Black Diverging

Updated.

<color-palette name="Classic Red-White-Black" type="ordered-diverging">
<color>#1e1e1e</color> <color>#393939</color> <color>#575757</color> <color>#838383</color> <color>#bfbfbf</color> <color>#ffffff</color> <color>#fcb4a5</color> <color>#e86753</color> <color>#cc312b</color> <color>#b41f27</color> <color>#9c0824</color>
</color-palette>

Orange-White-Blue Diverging

Updated.

<color-palette name="Classic Orange-White-Blue" type="ordered-diverging">
<color>#26456e</color> <color>#2e5f8a</color> <color>#3679a8</color> <color>#6a9ec5</color> <color>#b7cde2</color> <color>#ffffff</color> <color>#ffc2a1</color> <color>#fb8547</color> <color>#d85a13</color> <color>#a84415</color> <color>#7b3014</color>
</color-palette>

Red-White-Black Light

Discontinued.

<color-palette name="Classic Red-White-Black Light" type="ordered-diverging">
<color>#c6c6c6</color> <color>#d1d1d1</color> <color>#dddddd</color> <color>#e8e8e8</color> <color>#f3f3f3</color> <color>#ffffff</color> <color>#fff0f0</color> <color>#ffe0e1</color> <color>#ffd1d3</color> <color>#ffc2c5</color>
</color-palette>

Orange-White-Blue Light Diverging

Discontinued.

<color-palette name="Classic Orange-White-Blue Light" type="ordered-diverging">
<color>#c4d8f3</color> <color>#d0e0f6</color> <color>#dce8f8</color> <color>#e8effa</color> <color>#f3f7fd</color> <color>#ffffff</color> <color>#fff5eb</color> <color>#ffead8</color> <color>#ffe0c5</color> <color>#ffd6b1</color> <color>#ffcc9e</color>
</color-palette>

Red-White-Green Light Diverging

Discontinued.

<color-palette name="Classic Red-White-Green Light" type="ordered-diverging">
<color>#b7e6a7</color> <color>#c6ebb8</color> <color>#d5f0ca</color> <color>#e3f5db</color> <color>#f1faed</color> <color>#ffffff</color> <color>#fff0f0</color> <color>#ffe0e1</color> <color>#ffd1d3</color> <color>#ffc2c5</color> <color>#ffb2b6</color>
</color-palette>

Red-Green Light Diverging

Discontinued.

<color-palette name="Classic Red-Green Light" type="ordered-diverging">
<color>#b7e6a7</color> <color>#c1e6b4</color> <color>#cae6c0</color> <color>#d4e6cc</color> <color>#dde6d9</color> <color>#e5e5e5</color> <color>#ecdbdc</color> <color>#f2d1d2</color> <color>#f8c7c9</color> <color>#fcbdc0</color> <color>#ffb2b6</color>
</color-palette>
Thanks for your feedback!Your feedback has been successfully submitted. Thank you!
