Step 7: Build a story to present

You want to share your findings with the larger team. Together, your team might reevaluate selling machines in North Carolina.

Instead of having to guess which key insights your team is interested in and including them in a presentation, you decide to create a story in Tableau. This way, you can walk viewers through your data discovery process, and you have the option to interactively explore your data to answer any questions that come up during your presentation.

Create your first story point

For the presentation, you'll start with an overview.

  1. Click the New story button.

  2. New Story icon

    You're presented with a blank workspace that reads, "Drag a sheet here." This is where you'll create your first story point.

    Blank stories look a lot like blank dashboards. And like a dashboard, you can drag worksheets over to present them. You can also drag dashboards over to present them in your story.

  3. From the Story pane on the left, drag the Sales in the South worksheet onto your view.

  4. Add a caption—maybe "Sales and profit by year"—by editing the text in the gray box above the worksheet.

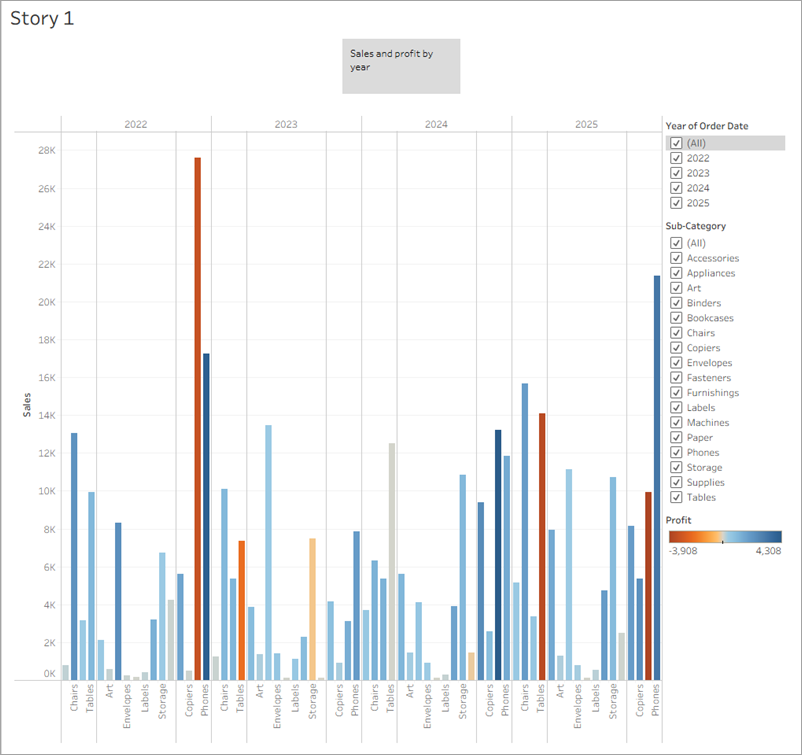

    The Sales in the South sheet displayed in a story

  5. This story point is a useful way to acquaint viewers with your data.

But you want to tell a story about selling machines in North Carolina, so let's focus on that data.

Highlight machine sales

To bring machines into the picture, you can leverage the Sub-Category filter included in your Sales in the South bar chart.

  1. In the Story pane, click Duplicate to duplicate the first caption.

    Continue working where you left off, but know that your first story point will be exactly as you left it.

  2. Since you know you’re telling a story about machines, on the Sub-Category filter, clear the selection for (All), then select Machines.

    Now your viewers can quickly identify the sales and profit of machines by year.

  3. Add a caption to underscore what your viewers see, for example, "Machine sales and profit by year."

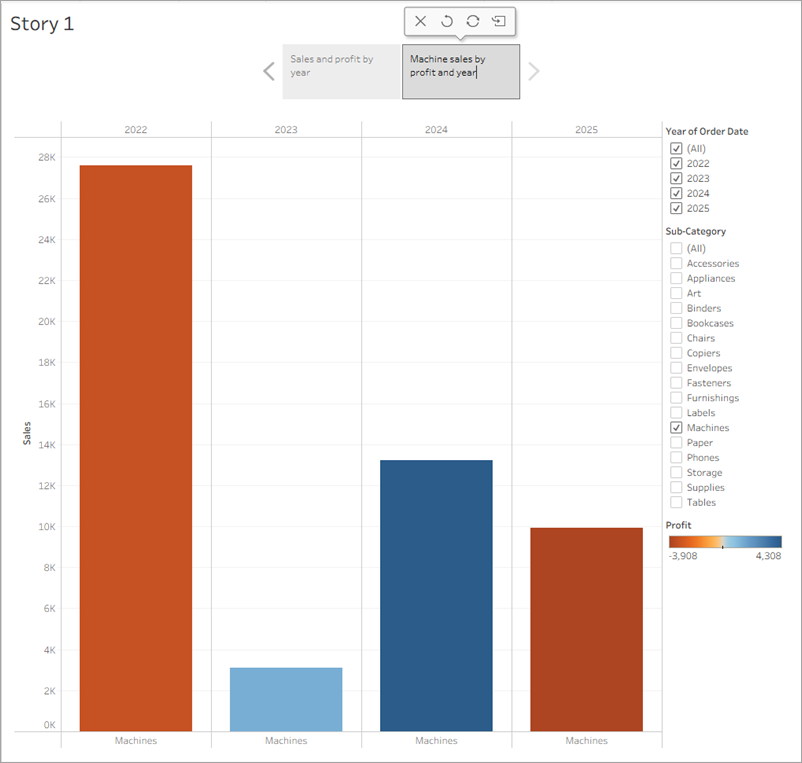

    A story that includes the Sales in the South sheet and is filtered for machines

    You've successfully shifted the focus to machines, but you realize that something seems odd: in this view, you can't single out which state is contributing to the loss.

    You'll address this in your next story point by introducing your map.


    Learn more: What's this mini toolbar under your story point caption?

    The Story toolbar Icons that appear when you hover over story point captions shows under, or on top of, the story point caption once you drag your first story point onto the canvas and mouse-over the navigator area. Use it to revert changes, apply updates to a story point, delete a story point, or create a new story point out of the current, customized one. All of the options are available after you make a change to the story point. Otherwise only the delete option is available.

Check your work! Watch "Create your first story point" and "Highlight machine sales" in action.

Click the image to replay it

Make your point

The bottom line is that machines in North Carolina lose money for your company. You discovered that in the dashboard you created. Looking at overall sales and profit by year doesn't demonstrate this point alone, but regional profit can.

  1. In the Story pane, select Blank. Then, drag your dashboard Regional Sales and Profit onto the canvas.

    This gives viewers a new perspective on your data: Negative profit catches the eye.

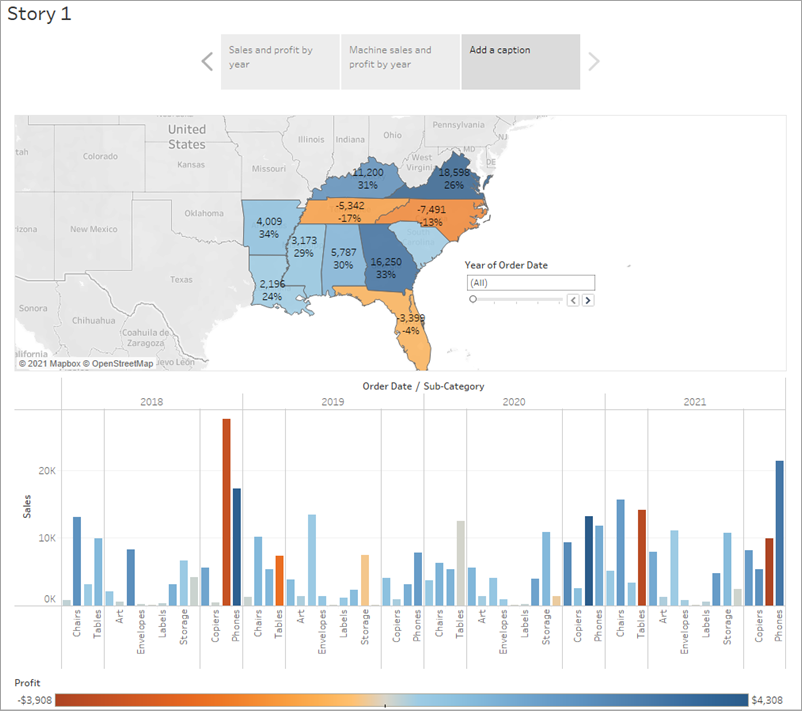

  2. A story that uses the Regional Sales and Profit dashboard

  3. Add a caption like, "Underperforming items in the South."

To narrow your results to just North Carolina, start with a duplicate story point.

  1. Select Duplicate to create another story point with your Regional Profit dashboard.

  2. Select North Carolina on the map and notice that the bar chart automatically updates.

  3. Select All on the Year of Order Date filter card.

  4. Add a caption, for example, "Profit in North Carolina, 2018-2021."

Now you can walk viewers through profit changes by year in North Carolina. To do this, you will create four story points:

  1. Select Duplicate to begin with your Regional Profit dashboard focused on North Carolina.

  2. On the Year of Order Date filter, click the right arrow button so that 2018 appears.

  3. Add a caption, for example, "Profit in North Carolina, 2018," and then click Duplicate.

  4. Repeat steps 2 and 3 for years 2019, 2020, and 2021.

Now viewers will have an idea of which products were introduced to the North Carolina market when, and how poorly they performed.

Check your work! Watch "Make your point" in action.

Click the image to replay it

Finishing touches

On this story point that focuses on data from 2021, you want to describe your findings. Let's add more detail than just a caption.

  1. In the left pane, select Drag to add text and drag it onto your view.

  2. Enter a description for your dashboard that emphasizes the poor performance of machines in North Carolina, for example, "Introducing machines to the North Carolina market in 2021 resulted in losing a significant amount of money."

    For dramatic effect, you can hover over Machines on the Sales in the South bar chart while presenting to show a useful tooltip: the loss of nearly $4,000.

    The Regional Sales and Profit dashboard with a text caption that reads “Introducing machines to the North Carolina market in 2021 resulted in losing a significant amount of money.”

  3. And now, for the final slide, you drill down into the details.

  4. In the Story pane, click Blank.

  5. From the Story pane, drag Negative Profit Bar Chart to the view.

  6. In the Year of Order Date filter card, narrow the view down to 2021 only.

    You can now easily see that the loss of machine profits was solely from Burlington, North Carolina.

  7. In the view, right-click the Burlington mark (the bar) and select Annotate > Mark.

  8. In the Edit Annotation dialog box that appears, delete the filler text and type: "Machines in Burlington lost nearly $4,000 in 2021."
  9. Click OK.

  10. In the view, click the annotation and drag it to adjust where it appears.

  11. Give this story point the caption: "Where are we losing machine profits in North Carolina?"

  12. Double-click the Story 1tab and rename your story to "Improve Profits in the South".

  13. Review your story by selecting Window > Presentation mode.

  14. Learn more: Size to fit.

    What are those scroll bars doing on the right side or the bottom of your dashboard story point while you're in presentation mode?

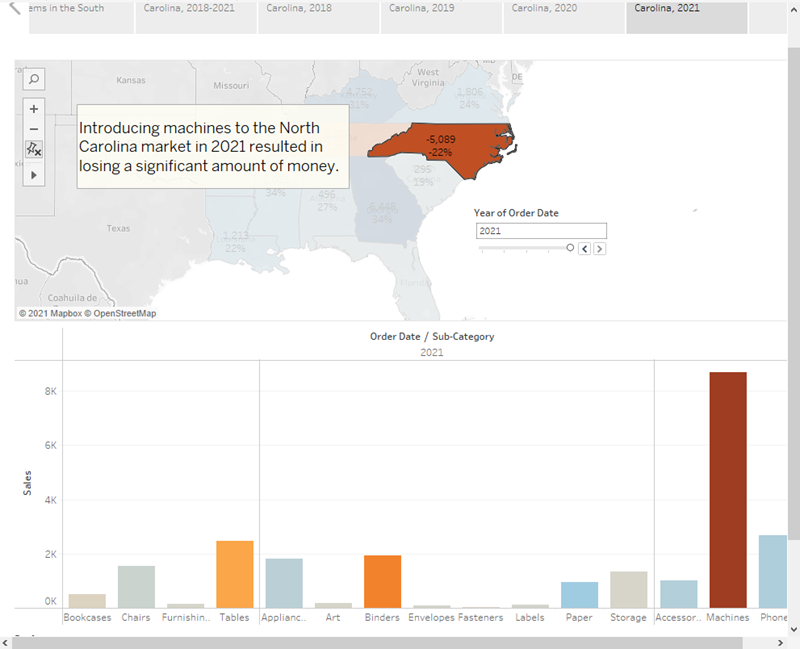

    A story that has horizontal and vertical scroll bars

    It seems like your dashboard is too big for the presentation. That's irritating. Press the Esc key to exit your presentation, and then select the Regional Profit sheet at the bottom of your workbook.

    In the left pane under Dashboard, change the Size drop-down selection from Desktop to Fit to Improve Profits in the South. This will automatically size your dashboard for optimal story viewing.

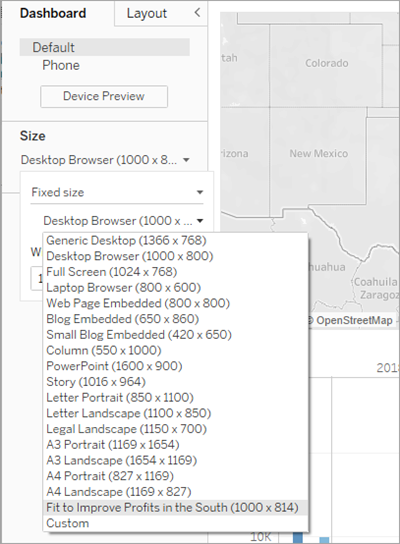

    The Dashboard pane menu used to change the size of your dashboard

    Select Fit to Improve Profits in the South and then enter Presentation mode again. Your dashboard fits nicely.

Check your work! Watch "Finishing touches" in action.

Click the image to replay it

After you present

Your presentation went very well. The team is convinced that there is work to be done to increase profit in Burlington, North Carolina. And, they're curious to know why machines did so poorly in the first place. Your boss is thrilled—not only have you identified a way to address negative profit, you've got the team asking questions about their data.

To keep the lessons fresh in their minds, your boss asks you to email your team a document with your findings. It's a good thing that you know about sharing your visualizations with Tableau Server and Tableau Public.

Continue to Step 8: Share your findings.
