Set Up Amazon Redshift IAM OAuth


Starting in Tableau 2023.3.2 for on premises (Tableau Desktop, Tableau Server and Tableau Prep), you can use OAuth 2.0/OIDC to federate identity from an external identity provider to Amazon Redshift.

These instructions are for the older AWS IAM service. For IAM IDC integration see Set Up Amazon Redshift IAM Identity Centre OAuth.

Depending on the identity provider, there are different steps needed to configure the integration. This is a high-level overview. Tableau cannot provide detailed instructions for how to configure AWS or the IDP, but the general approach is described below.

Step 1: Configure the IDP

  1. Create OAuth clients on the IDP for Tableau Desktop, and Tableau Server or Tableau Cloud. The Desktop client should enable PKCE and use http://localhost redirects.

  2. Add custom claims to use for authorisation to roles. In particular, if you are using original IAM, you may want to add claims for DbUser and DbGroups. These can be used in your IAM policies later.

  3. Create the Tableau OAuth config files. See documentation on GitHub(Link opens in a new window), and examples here(Link opens in a new window). We welcome examples for other IDPs.

    1. Be sure to prefix the Tableau OAuth config IDs with “custom_”.

    2. If your IDP supports dynamic localhost port then disable OAUTH_CAP_FIXED_PORT_IN_CALLBACK_URL. If your IDP does not support this, make sure to add several localhost callback URLs to the allowlist in the config file and on the IDP.

  4. Install the new Tableau OAuth configuration files in the OAuthConfigs folder associated with each application on desktop hosts (Tableau Desktop, Tableau Prep Builder, Tableau Bridge), and on each Tableau Server and Tableau Cloud site that will be using OAuth.

Configure IDP on AWS

1. Create the IDP model on the AWS. See Amazon docs Web Identity Federation(Link opens in a new window) and Create OIDC Identity Provider(Link opens in a new window).

2. Create roles and policies specifically for the IDP. See Create Role for OIDC(Link opens in a new window) in the AWS docs.

Configure Roles for Redshift Users

Attach the policies needed for Redshift. You may use custom claims from the token to authorise to roles. There are several examples with SAML in the AWS documentation(Link opens in a new window). These can be easily adapted to OAuth. In the case of OAuth, the claims are just “DbUser”, “DbGroups”, etc.

Here is an example of the policy from the AWS documentation:

{
"Version": "2012-10-17",
"Statement": [
    {
        "Effect": "Allow",
        "Action": "redshift:GetClusterCredentials",
        "Resource": [
            "arn:aws:redshift:us-west-1:123456789012:dbname:cluster-identifier/dev",
            "arn:aws:redshift:us-west-1:123456789012:dbuser:cluster-identifier/${redshift:DbUser}",
            "arn:aws:redshift:us-west-1:123456789012:cluster:cluster-identifier"
        ],
        "Condition": {
            "StringEquals": {
                "aws:userid": "AROAJ2UCCR6DPCEXAMPLE:${redshift:DbUser}@example.com"
            }
        }
    },
    {
        "Effect": "Allow"
        "Action": "redshift:CreateClusterUser",
        "Resource": "arn:aws:redshift:us-west-1:12345:dbuser:cluster-identifier/${redshift:DbUser}"
    },
    {
        "Effect": "Allow",
        "Action": "redshift:JoinGroup",
        "Resource": "arn:aws:redshift:us-west-1:12345:dbgroup:cluster-identifier/my_dbgroup"
    },
    {
        "Effect": "Allow",
        "Action": [
            "redshift:DescribeClusters",
            "iam:ListRoles"
        ],
        "Resource": "*"
    }
]
}

Connect to Redshift

The user must specify the role ARN to assume, and select the OAuth config installed earlier.

When properly configured, the user will be redirected to the IDP to authenticate and authorise tokens for Tableau. Tableau will receive openid and refresh tokens. AWS is able to validate the token and signature from the IDP, extract the claims from the token, look up the mapping of claims to IAM role and either permit or block Tableau from assuming the role on the user’s behalf. (in other words, AssumeRoleWithWebIdentity(Link opens in a new window)).

Tokens

By default, Redshift OAuth IAM passes the ID token to the driver. For on-premise customers, including those using Tableau Bridge, you may use a TDC file to pass the access token instead.

<connection-customization class='redshift' enabled='true' version='10.0'>
	<vendor name='redshift' />
	<driver name='redshift' />
	<customizations>
		<customization name='CAP_OAUTH_FEDERATE_ACCCESS_TOKEN' value='yes'/>
	</customizations>
</connection-customization>

For more information about configuring and installing .tdc files, see Customise and Tune a Connection(Link opens in a new window) and Using a .tdc File with Tableau Server(Link opens in a new window).

Okta

If using Okta it’s better to use a “custom authorisation server” rather than the “org authorisation server”. The custom authorisation servers are more flexible. There is a custom authorisation server created by default, which is called “default”. The authorisation URL should look like this:

https://${yourOktaDomain}/oauth2/{authServerName}/v1/authorize



Update Driver

For Redshift OAuth using the original IAM service, you may use either:

Troubleshooting

The best way to diagnose errors is to remove Tableau from the picture. You can instead test using the driver manager or a similar tool. This is just for troubleshooting – you shouldn't use a DSN or the "Other ODBC" connector for regular usage of this feature. To help ensure a valid test, the parameters should be the same as shown below, except for the cluster information, database, token and namespace.

If you see an error message about invalid/expired token coming from the driver on the first connection (it will have a SQLState error code like [28000] or [08001] in the error message), then Tableau successfully completed the OAuth flow, and failed in the driver. This means there is a misconfiguration on either the AWS side or the IDP side. There may also be permissions or authorisation errors returned from the driver, which is also out of Tableau's control.

Before you begin testing, you first need to get an access token (the default for IAM IDC) or refresh token (if customised) to send to the driver.

Here is an example with Okta. Almost all IDPs have a way to do this which is quite similar. Note that to use this flow you need to have enabled resource owner password grant type. Substitute the IDP URL, client secret, client ID, username and password.

curl -X POST "https://OKTA_URL/v1/token" \
-H 'accept: application/json' \
-H "Authorization: Basic $(echo -n 'CLIENTID:CLIENTSECRET' | base64)" \
-H "Content-Type: application/x-www-form-urlencoded" \
-d "grant_type=password&username=USER&password=PASSWORD&scope=openid"

Once you have the token, you can use a DSN to test. For Windows, you can use the ODBC driver manager. On Mac you can use the iODBC driver manager UI. On Linux you can use the isql command line tool that is included with Tableau Server in the customer-bin folder.

Tableau recommends you do not use other plugins to test, because they may not work in a server environment. They either use a fixed AWS profile or require direct access to a browser.

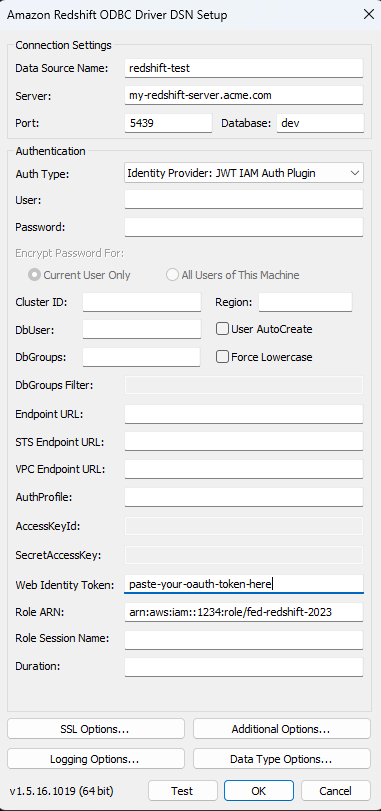

Below is an example of using the ODBC driver manager on Windows.
